Description

The Building-to-Building Internet Bridge Kit removes the complexity from deploying reliable outdoor wireless backhaul. This professionally curated kit combines proven Mimosa radios, high-gain dish antennas, Cambium 48 V PoE injectors, surge protection, and mounting hardware into a single, ready-to-install solution.

Radios ship pre-paired and staged, reducing onsite setup time and minimizing configuration errors. Ideal for connecting separate buildings, extending networks across a property, or establishing redundant paths where fiber is not feasible.

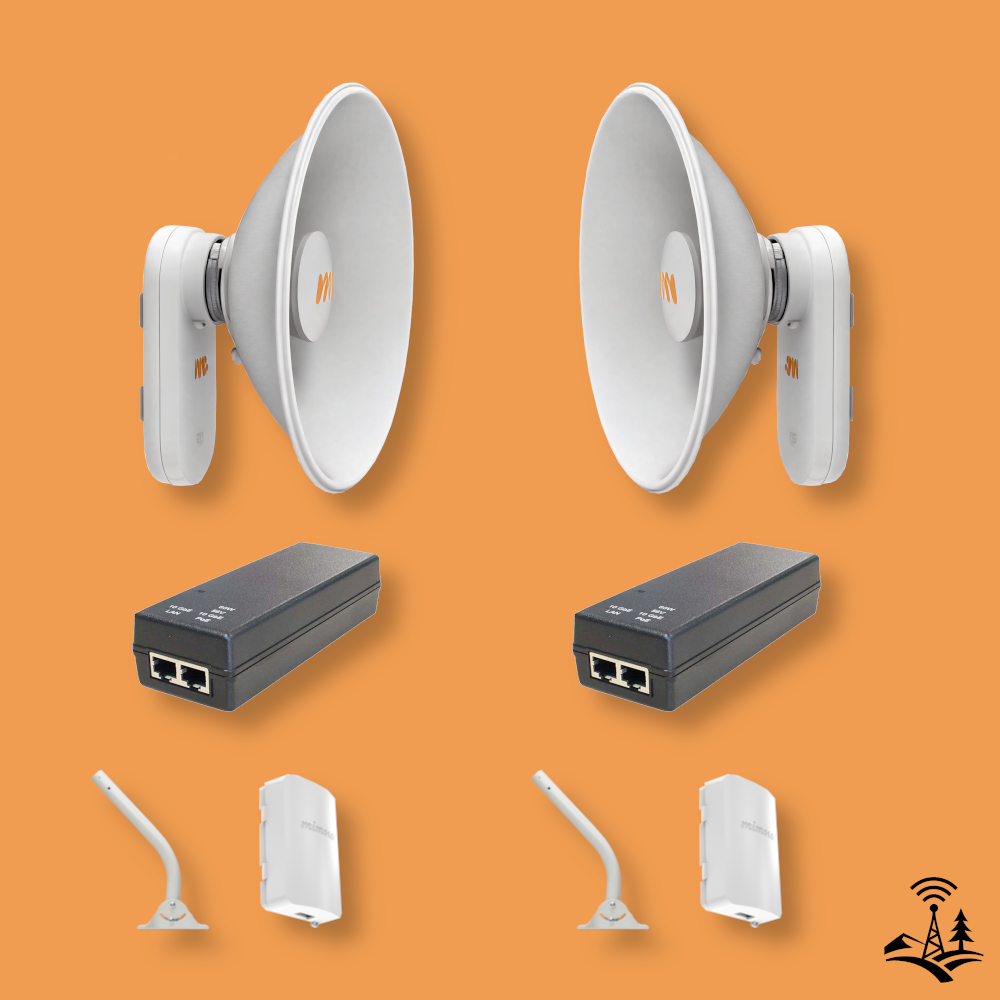

What’s Included

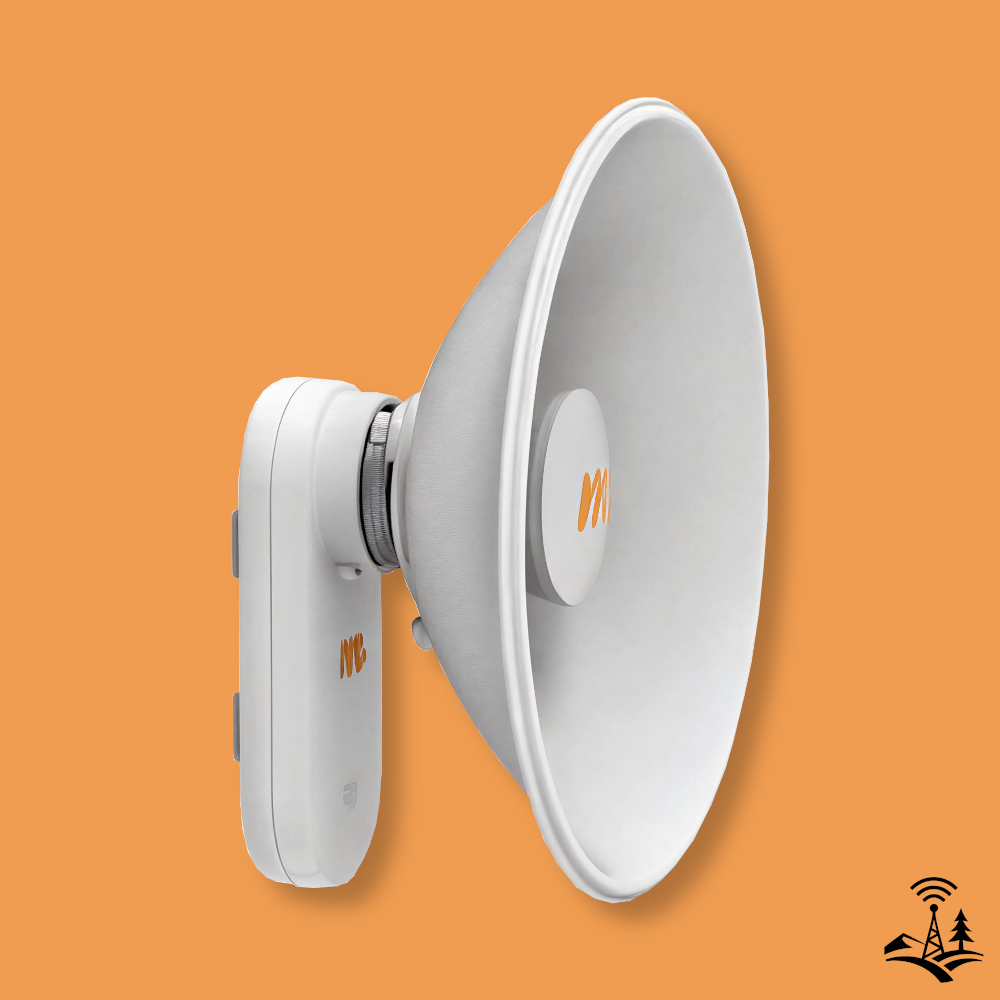

• 2 × Mimosa C5X Outdoor Radios
  Modular 5 GHz radios engineered for long-range point-to-point links.

• 2 × Mimosa 20 dBi High-Gain Dish Antennas
  Improves link budget and performance for longer distances.

• 2 × Mimosa Gigabit Network Interface Devices (NID)
  Outdoor surge protection and grounding point for each radio.

• 2 × Cambium 48 V PoE Gigabit Injectors
  Powers each radio over Ethernet using a single cable.

• 2 × Ubiquiti Universal J-Arm Mounts (UB-AM)
  Wall or pole mounting hardware for flexible installation.



Key Features

• Pre-Paired Radios – Ships configured and tested

• 48 V PoE Included – No separate power supplies required

• Surge Protection at Each End

• Outdoor-Rated Hardware

• Professional-Grade Mounting Hardware Included

• 700mbps total throughput possible on this bridge (Roughly 350mbpsx350mbps on an 80mhz channel. Subject to local RF conditions.)

• Range of 5-10 miles easily supported in LOS conditions with clean spectrum.



Use Cases

• Building-to-building connectivity

• Campus and business park networks

• WISP backhaul links

• Temporary or rapid-deployment networks



Requirements

• Clear line of sight between endpoints

• AC power available at each building

• Ethernet handoff to your switch or router



Shipping & Pickup

• Ships fully staged and boxed

• Free local pickup available

• Freight shipping quoted manually



Optional Add-Ons

• Professional installation

• UPS / battery backup for PoE

• Grounding kits and bonding hardware

• Longer-reach dish upgrades
